16pin OBDII Passthru Cable with Power Break Out and IP68 Rating for Heavy-Duty Automotive Wiring Harness
Datos del producto:
| Lugar de origen: | Guangdong, China |
| Nombre de la marca: | Edgarcn & EdgarWireHarness |
| Certificación: | IATF16949 TS16949 UL |
| Número de modelo: | J1939 y J1962 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 10000 |
|---|---|
| Precio: | $1.40-1.50 |
|
Información detallada |
|||
| Tipo de conector: | Deutsch J1939 HD-16-9-1939S-P080 HD-10-9-1939P-P080 | Recuento de alfileres: | 2 pines |
|---|---|---|---|
| Tipo de cable: | UL 1007 18# y 16# | Conservación de los contactos: | 20 libras |
| Tensión de engarzado: | > 20 libras (18#),> 25 lbs (16#) | Temperatura de funcionamiento: | -40 ℃ a +125 ℃ |
| Resistencia a la vibración: | 20 g de 10-2000Hz durante 2 horas | Calificación IP: | IP68 |
| Profundidad impermeable: | 1.2 metros durante 24 horas | Tipo terminal: | 1060-16-0122 |
| Modelo de falla: | Daño de alambre, paja rota | Material: | Goma de silicona sellada, termoplástica |
| Serie de conector: | EDG-HD | Opciones de color: | ROJO, NEGRO, AZUL, VERDE |
| Longitud personalizada: | Sí | ||
| Resaltar: | 16pin OBDII Passthru Cable,IP68 Rating Automotive Wiring Harness,Power Break Out Diagnostic Connector Cable |
||
Descripción de producto

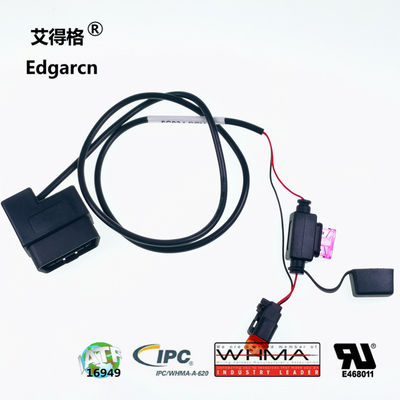

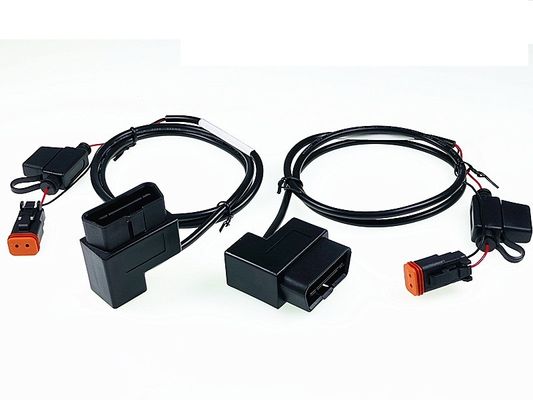

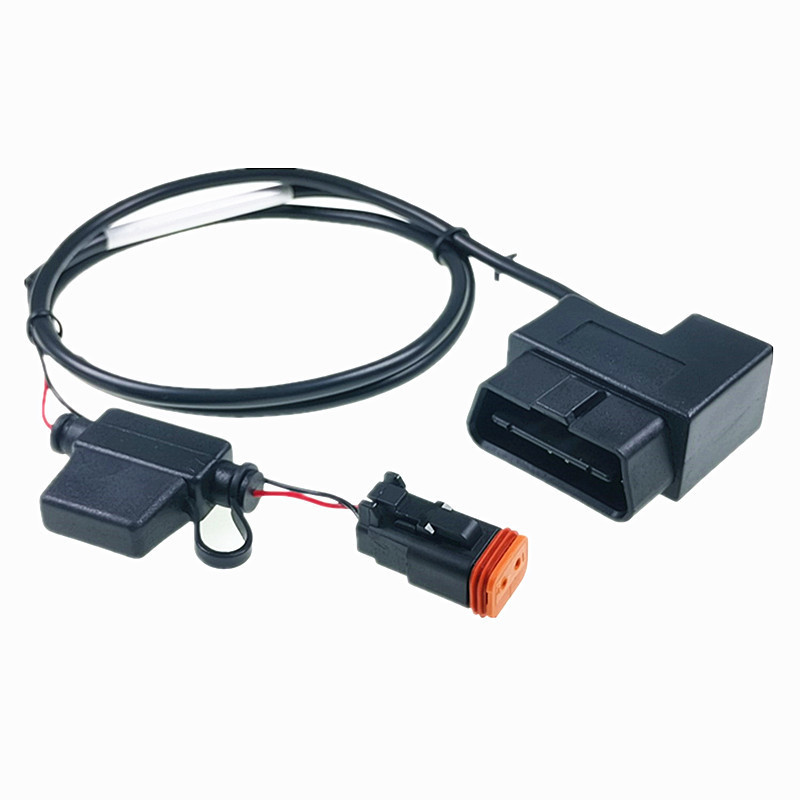

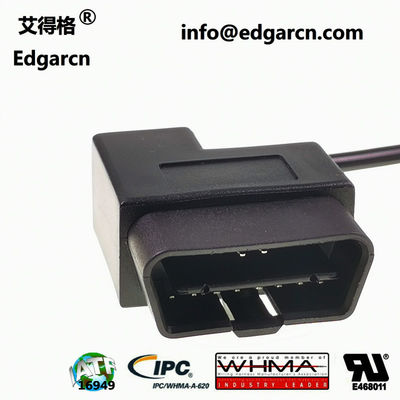

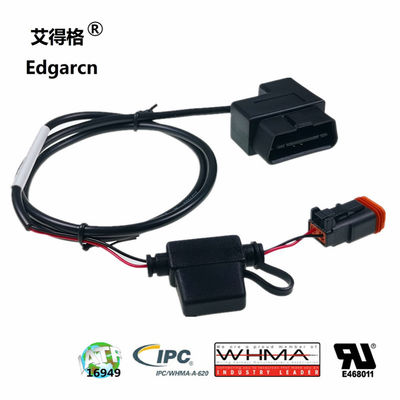

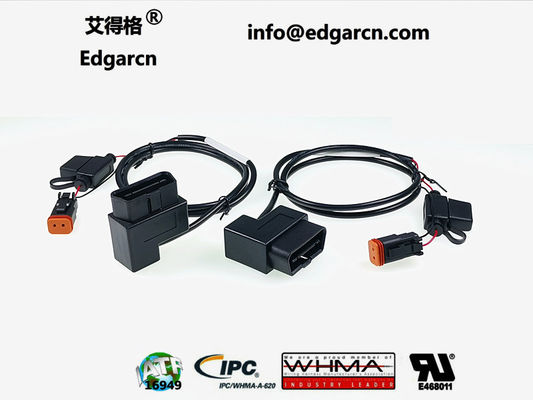

The EDG-HD series is an environmentally sealed silicone rubber thermoplastic cylindrical connector designed for fast, easy, trouble-free assembly in heavy-duty diagnostic applications including trucks, buses, cross-country vehicles, cranes, and forklifts. When mated, the contacts are protected from water, dust, oils, fuel, road salt, grease, mud, and other contaminants.
- Operating temperature range: -40℃ to +125℃ (no cracking, chipping, or leaking after 20 test cycles)
- Withstands 20 G's sinusoidal vibration at 10-2000Hz for 2 hours in three mutually perpendicular planes with no mechanical damage
- IP68 rated - waterproof with immersion under 1.2 meters of water for 24 hours
| Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|
| 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
| Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|
| 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
Packaging can be customized to client specifications. Standard lead times:
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Est. Time (Days) | 20 | 25 | To be negotiated | 30 days more |
International shipping available via DHL, UPS, FedEx, TNT, ARAMEX, and EMS. Options for air, sea, or other shipping methods.
