Waterproof Automotive Sealed APEX 2.8 Series 14 Position Engine Plug Wire Connector Harness with 2 Years Warranty
Datos del producto:
| Lugar de origen: | Guangdong, China |
| Nombre de la marca: | Edgarcn |
| Certificación: | ISO9001/TS16949 IPC620 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 10000 |
|---|
|
Información detallada |
|||
| Tipo de conector: | FCI 54201416 PA66 Conector impermeable | Tamaño terminal: | 2,8mm |
|---|---|---|---|
| Número de posiciones: | 14 | Material de alojamiento: | PA (poliamida) |
| Rango de temperatura: | -40 ° C a +125 ° C | Fuerza de retención de contacto: | > 90 N |
| Fuerza de la inserción del contacto: | <15 N | Fuerza de acoplamiento del conector: | <90 N |
| Paso: | 5.25 x 6.40 mm (fila doble) | Opciones de color: | Negro, gris claro, gris oscuro, natural |
| Compatibilidad terminal: | Apex 2.8 mm de terminales femeninos/masculinos | Calificación impermeable: | Sellado |
| Serie: | Apex 2.8 | Género conector: | Opciones de vivienda femenina/masculina |
| Composición de material: | Plástico, metal, caucho | ||
| Resaltar: | APEX 2.8 Series Engine Plug Wire Connector,14 Position Automotive Wiring Harness,2 Years Warranty Cable Assembly |
||
Descripción de producto

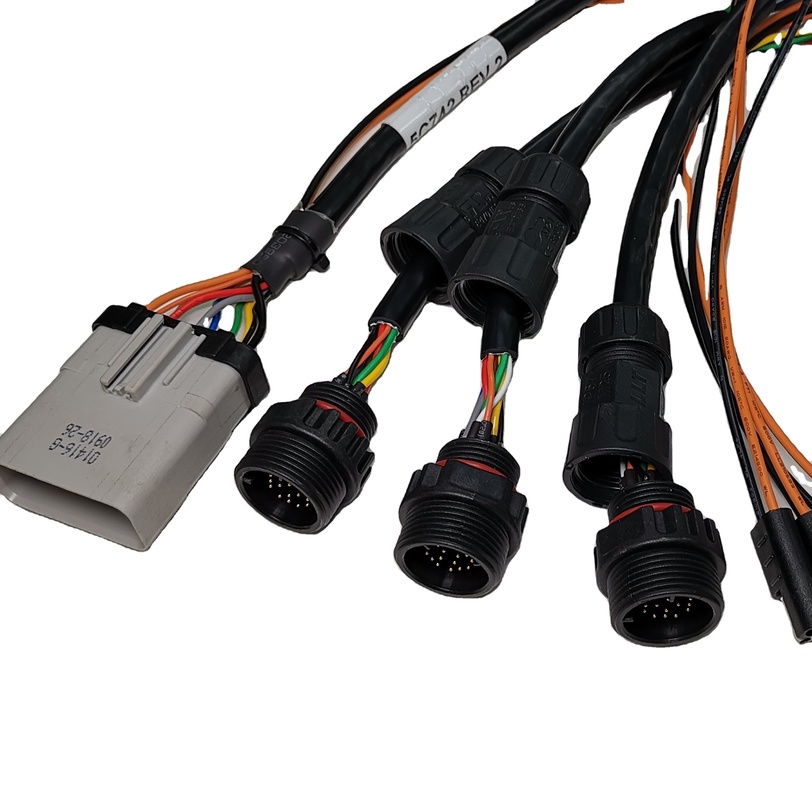

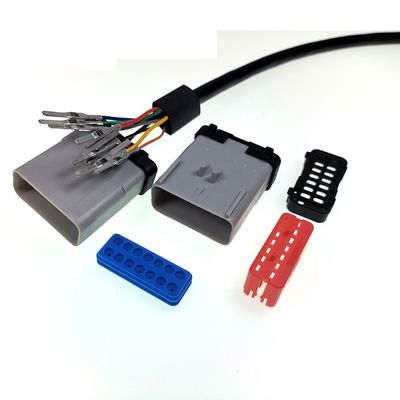

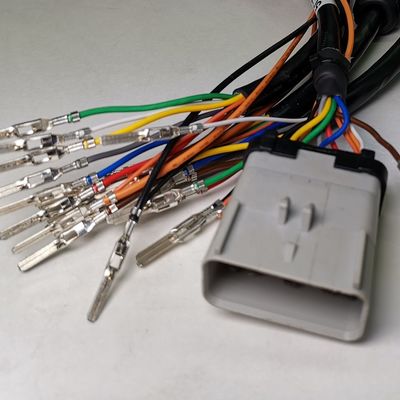

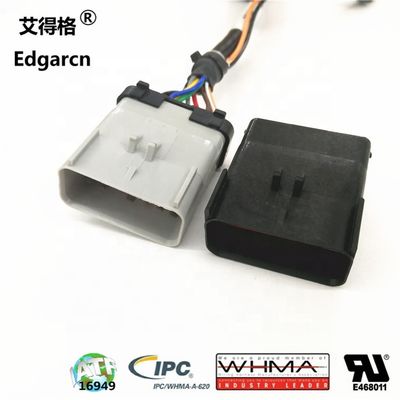

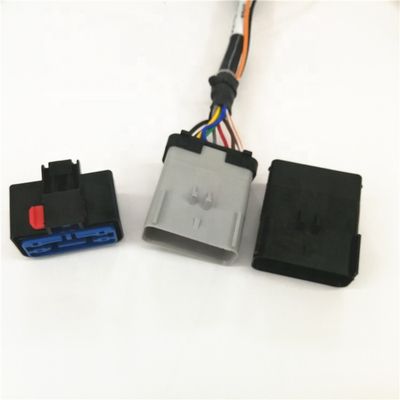

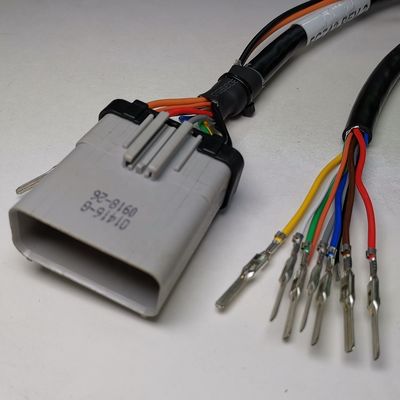

Waterproof Automotive Sealed APEX 2.8 Series 14 Position 54201416 Custom Engine Plug Wire Connector Harness Cable Assembly
Product Description
RP1226 Cable Assembly - FCI 54201416 Delphi PA66 waterproof connector with wire harness and cable assembly.
Custom Engine Sensor Plug Wire Connector Harness Cable Assembly specifically designed for Ford vehicles.
Key Features
- Waterproof automotive sealed Delphi FCI APEX 2.8 series connector
- 14 position grey connector with crimping cable assembly
- Valve cover glow plug connector pigtail wire harness
- FCI connector engine wire harness
- Instrument panel and cockpit connectors
- Coupling connectors with Apex 2/3/4/6/10/14 way coupling housings
OE Numbers
| Direct OE Cross | Manufacturer |
|---|---|
| 54201416 | FORD MOTOR COMPANY |
* This type harness kits for display only, will not sell out
Technical Specifications
- Temperature range: -40°C to +125°C
- Contact retention force: > 90 N
- Contact insertion force: < 15 N
- Connector mating force: < 90 N
- Housing material: PA (Polyamide)
- Usable terminals: Apex 2.8 mm female/male terminals
Packaging & Lead Time
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Est. Time (Days) | 20 | 25 | To be negotiated | 30 days more |
Packaging details can be customized by client specification. International shipping available via DHL, UPS, FedEx, TNT, ARAMEX, and EMS.
Frequently Asked Questions
Q: Can you help to design?
A: Yes, we are an ODM/OEM company specializing in wire harness & cable assembly since 1999.
Q: When will you start to help design?
A: We sketch simple solutions for initial discussion. After quotation and order placement, we begin detailed drawings and confirm with the client.
Q: What if quality issues occur?
A: Our quality and engineering team responds to quality issues within 72 hours, committed to long-term customer relationships and service excellence.
Q: Do you have standard products to reduce lead time?
A: Yes, we have over 1000 sets of molds and more than 5000 products developed over 20 years of specialization in wire harnesses.
Quiere saber más detalles sobre este producto
